IN STOCK Pre-Owned 2021 CUSTOM ATC 8.5X28 Quest Loaded!

 In Closed Trailers, Inventory

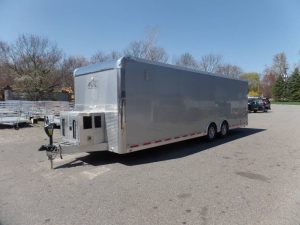

Pre-Owned CUSTOM 8.5X28 ATC Quest 405 Series Model QSTAB8528+0-2T6.0K
8.5 X 28 ft. Bumper Pull with 7 ft. interior height
Rear Ramp Door Opening custom 7’ high by 96”. Extra Wide.
2- 6,000 lb. Dexter Torflex axles
Spread Axle Design for better highway towing.
All Aluminum Full Perimeter Box Tube Frame, 8 inch Main Frame
All Aluminum Extruded Flooring ( no wood in trailer).
12” on Center Floor Cross-member Framing
16” On Center Walls, and Roof Framing
Bogey Wheels under Rear
Spare Tire on matching Aluminum Rim ST235/80R16 LRE

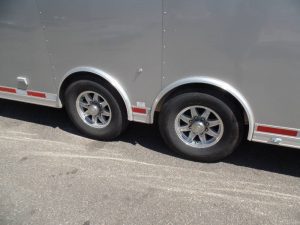

All 4 ST235/80R16 LRE Radial Trailer Tires on Aluminum Rims
One Piece Aluminum roof
Interior Walls and Ceiling Screw-less White Aluminum
Walls Insulated 1” EPS foam R-5
Exterior Walls .040 Silver Aluminum Bonded, with Rivets on Seams for longer life.
Long Gradual Beavertail for Loading low ground clearance cars.
Rear Ramp Door, No Gap Continuous Hinge.
Triple Tube Extended Tongue.
Aluminum Generator Box on Tongue, ATC built, with vented aluminum doors.
7,000 watt Honda Quiet Inverter Generator in Gen Box ( optional )*
Stainless Steel Front Uprights with Polished Cast Aluminum Corners
2 5/16 Ball Coupler, rated 21,000 lb. HD coupler
50 Amp Electrical Package
50 amp input panel with 120 volt to 12 volt converter charger built in.
12 Volt AGM Glass Mat Battery on Board, with charge line.
All Interior and Exterior Lighting LED type lights.
6 very bright LED 4”X14” interior Dome Lights ( very bright)
2- 3” X 7 “ Exterior Scene Lights on Curb Side
5 – 120 volt interior duplex outlets.
2– exterior duplex outlet.
12 Volt Electric Tongue Jack
LED Side Turn Signal Lights over Fenders
1 – Pair Slim-line LED Backup / Reverse  Lights. On Rear Ramp Door, angle mounted
2 – Pair Slim-line LED Taillights / on Rear Ramp Door , angle mounted
1 – Pair Angled LED Loading Lights on rear door header , wired to work as both loading and reverse lights.
Lower Side Mount Docking Lights – stainless steel
Interior Cabinets Upper with Flip Up top Hinged doors with gas struts./ LED Puck Lights under Cabinets
Lower Countertop , Aluminum
Side Vent System , 2 way Salem type vents.
1- Angled “ Porch Light “ at side door. with 12 volt switch.
2 – 120 volt 500 Watt Quartz Swing out lights at rear ramp.

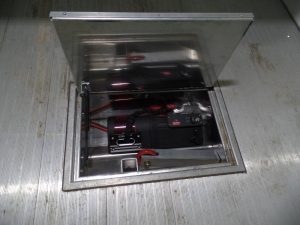

1- 5,000 lb. Winch 12 volt, with synthetic rope,  wireless remote. and Recessed In Floor Compartment
1- AM/FM/CD/MP3 Stereo, Sirius Ready, and I–Pod Ready, Bluetooth Ready / With 4 Cube Speakers

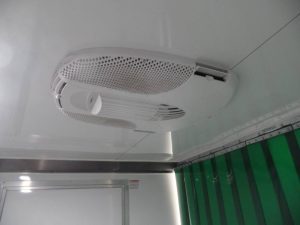

Air Conditioner 15,000 btu , with wall thermostat.
Cold Curtain between front area and car area to maximize AC in front of trailer.
Pull out aluminum step at side door .
This is one of the last Custom built ATC , with line item options, and prints.
Original Prints and Line Item build sheet on hand.
Our Unit # 220457 Price of this trailer no generator $34,900.00
email,  or call 973-347-3472 and ask for Glenn. to check price and availability
Current replacement cost IF ATC would build it, over $62,000.00 and a 1 year wait!
Honda 7000 is Generator $3,900.00 with trailer if wanted.
This customer’s new ATC Gooseneck has arrived, and this  28′ bumper pull is now available!
