EXAMPLE / ALCOM STEALTH SPECIAL UTV/SIDE X SIDE Model, Drive Over Fenders! 80″ between fenders, but 96″ wide over the fenders, 91″wide ramp opening. ID#152647

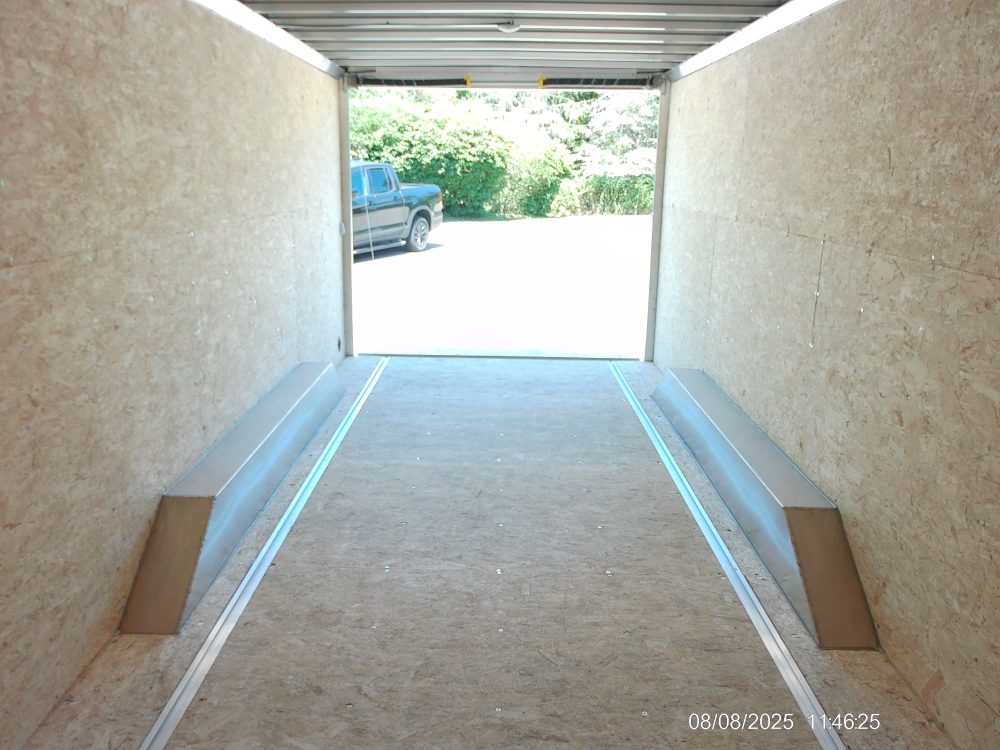

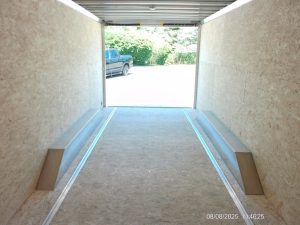

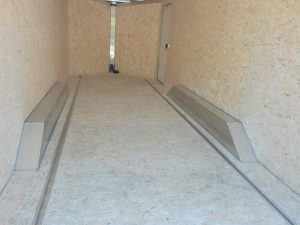

Special Drive Over Fenders inside this trailer allow you to load a vehicle with wider tire width than what fits between the wheel wells.
The limiting dimension on what can be loaded is the ramp door opening width is 91″ wide. So the tires cannot be wider than 90″
The height can be ordered taller in 3 inch increments from this manufacturer So if you have a 78″ tall machine and you intend to drive
it up and over the 12″ high fenders ( front wheels drive up and over ) then you will want to order this in a 93″ tall interior height
which will allow 81″ above the fenders to the ceiling.

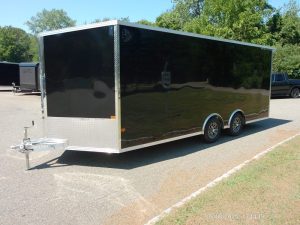

This is an 8 1/2 by 20 ft. V nose aluminum frame trailer it is rated 7,000 lbs. Gross Vehicle Weight Rating, Empty weight is 2,280 lbs.
This model is available in other lengths. 12′,14′,16′,18′,20′,22′,24′ and larger also available with higher weight ratings if you want
to carry more than one UTV/ Side X Side.

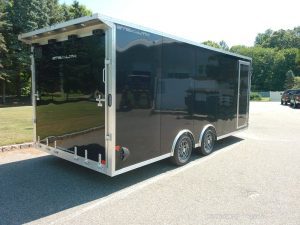

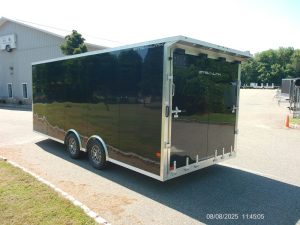

The pictures also show an Optional Rear Spoiler on the rear with lights in it.
Call with the dimensions of the machine or machines that you want to carry to get a quote.
build times for this type of trailer are typically 4 to 6 weeks.
Performance Trailers Inc. 973-347-3472 sales@traileroutlet.com

SPECIFICATIONS:
Stealth 8.5X any length UTV –
SIDE DOOR: CURBSIDE FRONT
DOLOR: BLACK
Integrated Frame
6.5 Wide Frame Design
V-Nose Construction (36″ Wedge)
“SLOPED V-NOSE”
.030 Screwless Skin, 3M Bonded on &awns
2″x5″ Subfrarne Tubing
160/C Floor & Roof Studs
16″ 0/C Wall Studs
Box Length: 20′
Box Width: 99″
Interior Height: 85″
• Rear Door Opening: 81″
Axles: 2-3k Braked Torsion Axles
Spread Axle. Design w/ Individual •Fenders

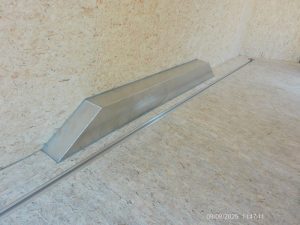

.090 Smooth Internal Fenders(Drive Over)
15″ Aluminum Wheels
2 5/16″ Coupler W/Safety Chains
2000# Center Jack w/Foot
GVW: 7000#

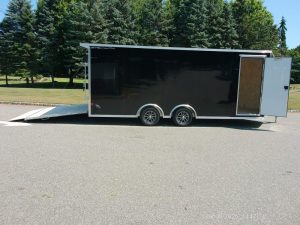

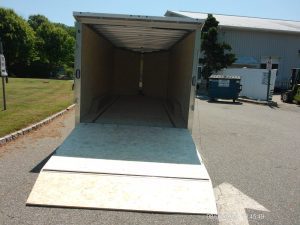

Car Hauler Grade Rear. Ramp w/Spring Assist, Starter Flap & Aluminum Hardware

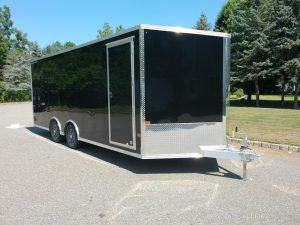

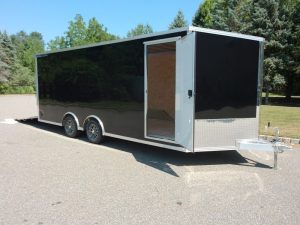

32″x78″ Side Access Door w/ Paddle Handle & Piano Hinge
24″ Stone guard
Anodized Nose Cone
3″ Exterior Trim
4 Exterior LED Lighting
Plastic Salem Vents
3/8″ Water Resistant Interior Walls
3/4″ Water Resistant Decking
Interior Cove Trim
(2) Dome Lights w/ Switch
(2) Rows of Slide Track w/(4) Sliding D-Rings
4-Year Limited Warranty

options shown :
Add 6″ to Box Height (PBF)
Rear Door Canopy w/ Lights
