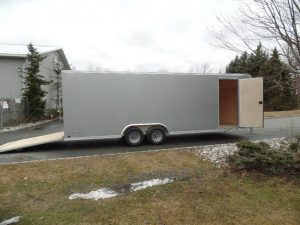

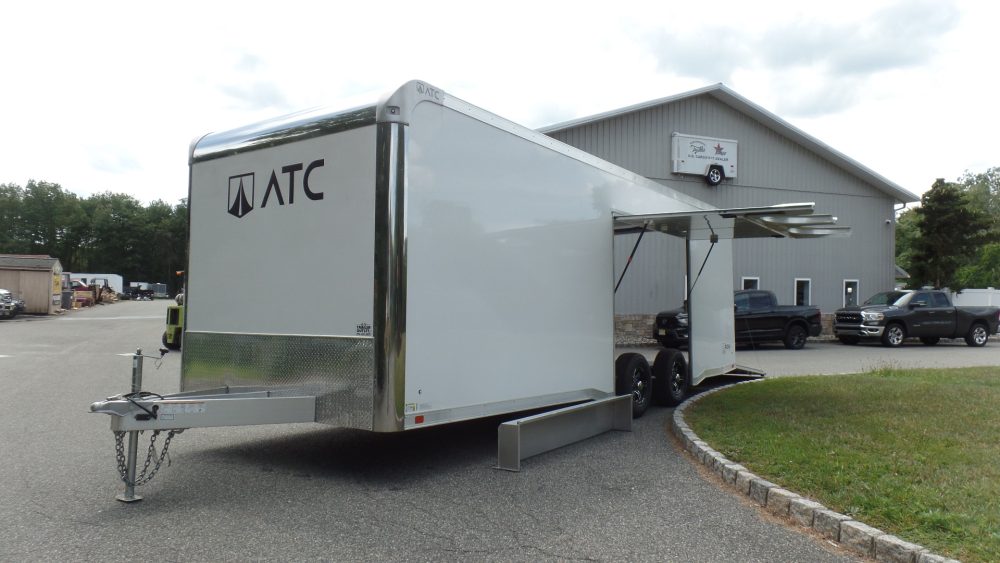

Example of Sold Unit / Enclosed Car Trailer with BIG Escape Door with Removable Fender !
Thinking about purchasing an enclosed trailer for you car?
Think about :
How will you get your car in and out of the trailer?
Will you be able to drive it in and get out of it?
Or will you use an electric winch?
Will a conventional Escape door work with your vehicle?
How much room is there under the driver side door to allow opening over the fender?
Before you start thinking about ” fancy stuff” think about how the trailer is a tool that is supposed to make your life easier.
Get the right ” tool ” Trailer for the Job. Take a look at the ” Game Changer ” PREMIUM ESCAPE DOOR !
We have different models from basic to loaded with this Very Nice to Have Feature.
RAVAB8524+0-2T52K
2- TORFLEX AXLE (2) 5200# – EZ LUBE HUBS – ELECTRIC BRAKES
AXLE SPACING – SPREAD AXLE
42 INCH SPREAD
FULL PERIMETER ALUMINUM FRAME

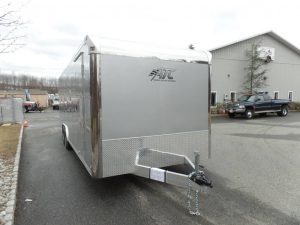

COUPLER – A-FRAME – 2-5/16″ – 10,000# RATED
FRONT DESIGN – FLAT 1 ea STD
JACK – TONGUE – TOP WIND – 5000 LB RATED
TONGUE – STANDARD -2″ X 7″ ALUMINUM BOX TUBE DOUBLE HOLLOW.
DOOR – ENTRANCE – 110 SERIES’- 36″ X 78″ – – FLUSH LOCK
LIGHT – TAILLIGHT – SLIMLINE – LED – 12V – RED 1 pr
LIGHT – CLEARANCE – LED – 12V – AMBER 4 ea ,
LIGHT – CLEARANCE – LED – 12V – RED 7 as
TRUCK PLUG-7 WAY I da STD
EXTERIOR – ALUMINUM -.030 – STANDARD COLOR I ea
COLOR: EXTERIOR SILVERFROST .
EXTERIOR FASTENER SCREWLESS
FENDERETTES – AL 4 ea STD
GRAVEL GUARD ATP – 24′ WITH J RAIL
ROOF – ONE PIECE – ALUMINUM
TRIM – RUB RAIL – LOWER ALUMINUM -3″
TRIM – RUB RAIL- UPPER – ALUMINUM – 3′
INTERIOR CEILING – OPEN STUD
FLOORING – ADVANTECH – 3/4″ 24 ft
INTERIOR WALLS – PLYWOOD – 3/8″ 24 ft
WHEEL BOX – HO SMOOTH AL 1 pr
PACKAGE-CAR HAULER :
CROSS MEMBERS – FLOOR – 16′ 0/C

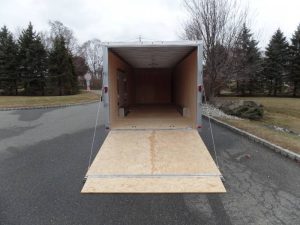

DOOR – REAR RAMP – RATED MAX LOAD – 4000 LB VEHICLE LOAD
RAMP DOOR FLOORING – ADVANTECH 3/4″
LATCH – BAR LOCK – ALUMINUM – 36″- W/ HASPS -2 PIECE – STAINLESS STEEL
TRANSITION FLAP – ADVANTECH – 3/4″ – 15″L
PULL HANDLE 1 ON RAMP DOOR
FLOOR DESIGN – BEAVERTAIL
4 – D-RINGS – 5000 LB – RECESSED IN FLOOR
TRIM – VERTICALS – FRONT & TOP RADIUS – STAINLESS STEEL – W/ CAST CORNERS – BRUSHED
OPTIONS:
CROSS MEMBERS – WALL – 16″ 0/C
ST225175R15/LRE – RADIAL TIRE ON ALUMINUM WHEEL

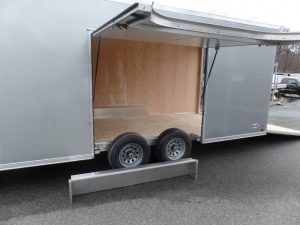

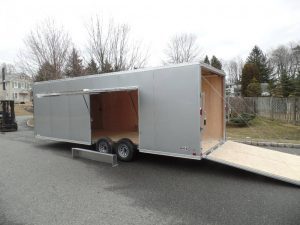

DOOR – ESCAPE – PREMIUM – 86″ X 66″ – TOP HINGE – FLUSH LOCK – REMOVABLE WHEEL WELL
• EXTERIOR FENDERETTES INTEGRATED INTO DOOR
• (2) PROP RODS
(2) 140 LB GAS SHOCKS
• ONE PIECE REMOVABLE INTERIOR WHEEL WELL
• ALUMINUM STEP
VENT – ROOF – MANUAL – 14″
LIGHT – DOME – LED – 12V – NON RECESSED – INTEGRATED SWITCH
INTERIOR HEIGHT – 7 FT INTERIOR HEIGHT
3 YR LIMITED WARRANTY , 1 YR ELECTRICAL WARRANTY

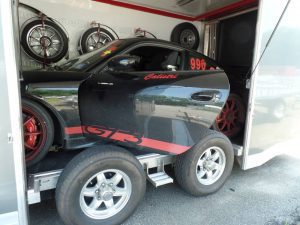

** Note one photo shows the door of a low Porsche opened through the escape door, that photo was taken in a trailer with other Options not included in the Raven
