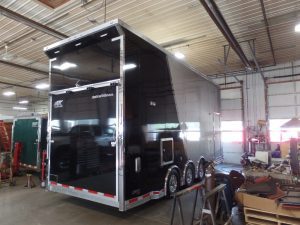

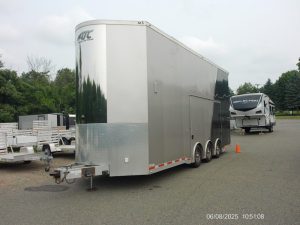

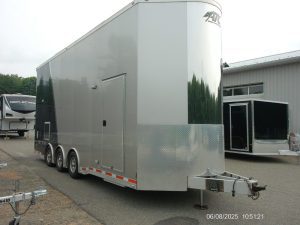

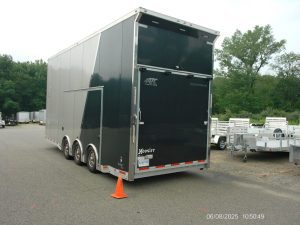

USED/ ATC STACKER 2 CAR with LIFT! 2017 Model Year, Loaded with Options! (Long List) In Very Good Condition. Replacement Value $158,000 / SALE $58,000

ATC TOP OF THE LINE STACKER!  Custom Built in 2017. QUEST MODEL
ATC TILTING LIFT, makes loading low cars easy.
Big Escape Door with Removable Fender makes it easy to get out of the cars.
80 ft. of E Track makes it easy to tie down your cars.

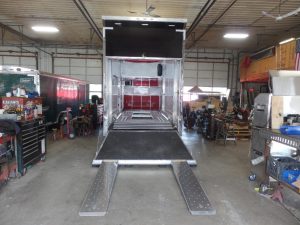

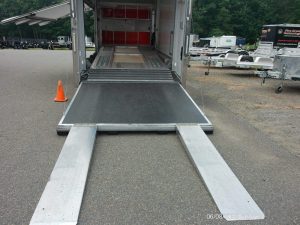

Ramp with no gap at the hinge, and long extensions makes loading easier.

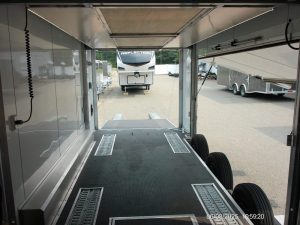

Finished Interior, with lots of storage, and attic space.
If you have been looking for a deal on a stacker trailer, you just found it!
Full List below pictures: Scroll all the way down.

Three 6,000 lb. Dexter Torflex Axles with Electric Brakes, and EZ Lube Hubs
All Aluminum tube construction 16″ on center framing, Floor and Walls

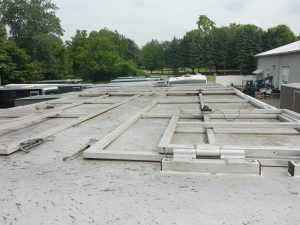

Full Walk On Roof Feature,
MODEL / QSTAB8524+0-3T6 OK
AXLE – 60004 – TORSION – EZ LUBE HUBS – ELECTRIC BRAKES
• GROUND CLEARANCE: STANDARD (APPROX. 14.25″ – NO LOAD)
AXLE SPACING – SPREAD AXLE
ALL TUBE CONSTRUCTION
CROSS MEMBERS – FLOOR – 16″ 0/C
CROSS MEMBERS – WALLS 16″ O/C
FRAME -8″
FRAME – FULL PERIMETER – ALUMINUM
FRAME PROTECTION – SKID PLATES
TRUCK PLUG -7 WAY – BUMPER PULL
EXTERIOR ALUMINUM – STANDARD COLOR
. Color: Champagne Beige (Standard)
• Color Rear: Black (Standard)
40 ft. of recessed e-track on main floor – 40′ on lift

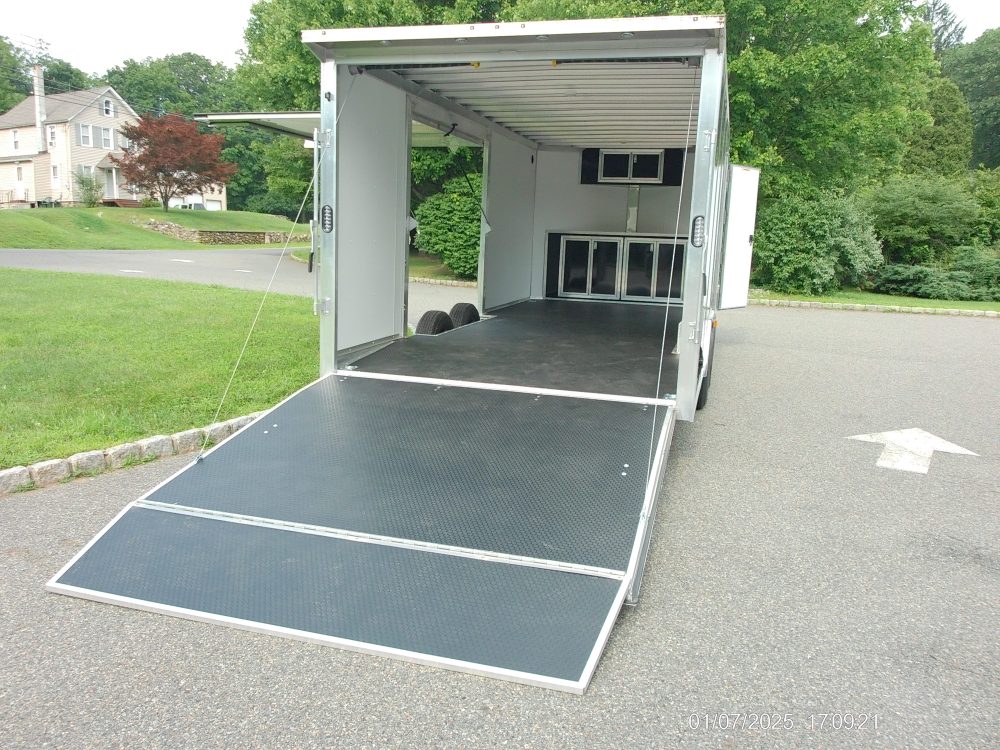

Installed 60″ ramp extensions.
Victory Red Cabinets
EXTERIOR ALUMINUM – TWO-TONE W/4″ POLISHED STAINLESS STEEL DIAGONAL
EXTERIOR FASTENER – SCREVVLESS 26 ft STD
FENDERETTES – AL – POLISHED
ROOF – ONE PIECE – ALUMINUM 26 ft STD
DOT TAPE length of bottom trim.
WHEEL BOX -SMOOTH ALUMINUM
LIGHT – CLEARANCE – LED – 12V – EXTRA MARKER LIGHTS
LIGHT – TAILLIGHT – SLIMLINE – LED – 12V – RED
SWITCH – WALL – 12V
PACKAGES
PACKAGE – STACKER – ST 305
BATTERY – 12V AGM (930 CA, 775 CCA)
• USED FOR: STACKER

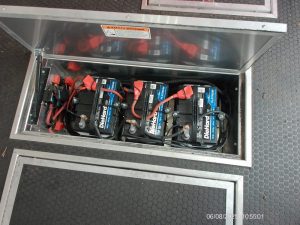

BATTERY BOX – IN-FLOOR – HOLDS UP TO 3 BATTERIES
SWITCH – POWER CUT-OFF – MANUAL – 12V

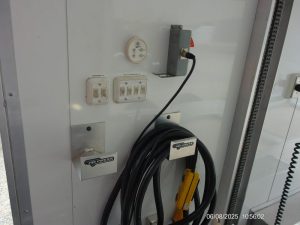

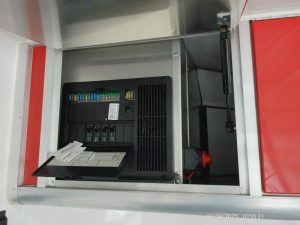

BREAKER BOX -50 AMP – 120V ONLY -60 AMP CONVERTER – 12V FUSE PANEL – INTELI-POWER UNIT
CABINET CONFIGURATION – B2-100″W – #119
• Cabinet Color: Victory Red
• CABINET – ALUMINUM – LOWER – STRAIGHT – WEDGE – FULL WIDTH X 28″D
• CABINET – ALUMINUM – UPPER – STRAIGHT – WEDGE – FULL MTH X 28″D – W/ RADIUS LOWER EDGE –
Puck Lights Under Upper Cabinet
TOP HINGED DOORS AND GAS SHOCKS on Upper Cabinets
COUNTERTOP – ALUMINUM – FOR BASE CABINET
COUPLER – FLAT NOSE – 2-5/16″ – 25,000#
COVE MOLDING – H.D. STACKER
CROSS MEMBERS – ROOF – 16″ 0/C – 1″ X 2″

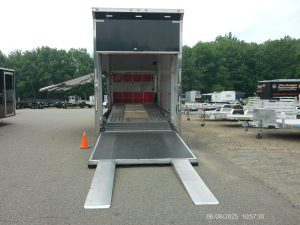

DOOR REAR RAMP HD PREMIUM CONTINUOUS ALUMINUM HINGE No Hinge Gap
Ramp Door 3600# RATED MAX LOAD – 6000# VEHICLE Load
DOOR OPENING HEIGHT – REAR – 90″
RAMP DOOR EXTERIOR – REAR – COLOR MATCHED
RAMP DOOR FLOORING – REAR – TPO – BLACK COIN
DOOR LATCH – PADDLE – STAINLESS STEEL
DOOR HARDWARE – BUMPER – RUBBER – 3″ – SET OF 4
DOOR – ENTRANCE -405 SERIES -36″ X 78″- FMVSS LOCK
STEP – SLIDE IN/OUT – ALUMINUM at Side Door- 36″
EXTERIOR ALUMINUM THICKNESS – .040
FLOOR DESIGN – BEAVERTAIL
FLOORING – BLACK COIN Rubber Flooring
FRAME -8″
GRAVEL GUARD – ATP – 48″ – WITH J RAIL
INTERIOR HEIGHT – 11.0′
INTERIOR CEILING – SCREVVLESS ALUMINUM
• Cove Color: Victory Red
• Ceiling Color: Polar White (Standard)
• Spring Box Color: Victory Red
INTERIOR WALLS – Screwless ALUMINUM
• Wall Color: Polar White (Standard)

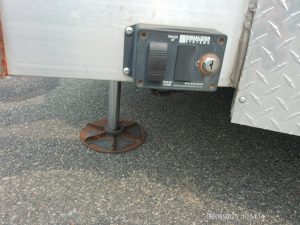

JACK – STABILIZER – POD – 3000#
• Location: REAR

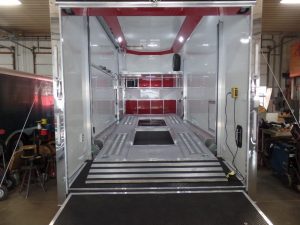

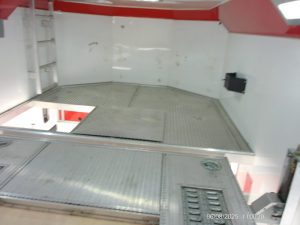

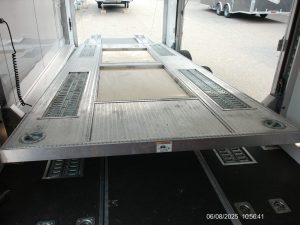

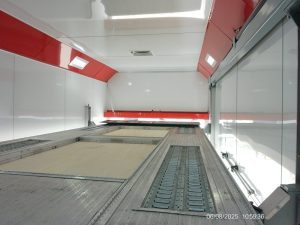

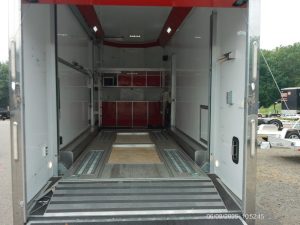

LIFT – SPLIT RAIL – 16′ – AL – 6000# CAPACITY – MILL FINISH AL UNDER SIDE
• SPLIT RAIL DESIGN
• 6000# CAPACITY
• 4 1/2″ THICK
• TILT CAPABILITY
• INCLUDES: HINGED TRANSITION RAMP
• INCLUDES: EXTRUDED ALUMINUM FLOORING
• INCLUDES: (4) 6000# D-RINGS
• INCLUDES: RECESSED AIRLINE TRACK
• INCLUDES: STANDARD UNDER LIFT STRIP LIGHTING W/ 3-WAY SWITCH
• INCLUDES: 2 WALL REMOTE LOCATIONS
REMOTE – CORDED – FOR STACKER LIFT – (2) WALL PLUG-IN LOCATIONS
LIGHT – SCENE – LED – HIGH OUTPUT – 12V – NON RECESSED – 7″ X 3″ Two Curb Side
SVVITCH – WALL – 12V 1
• USED FOR: Exterior Scene Lights
LIGHT – RECTANGULAR – LED – 18″ – 12V – RECESSED – W/ TRIM RING 5 each
SVVITCH – WALL – 3 WAY – 12V 1 pr
• USED FOR: LIGHT – RECTANGULAR – LED – 18″- 12V – RECESSED – W/ TRIM RING
SWITCH – RELAY – 12V – 30A
. (1) RELAY SWITCH REQUIRED WHEN OPTIONING MORE THAN (4) – 18″ LED LIGHTS
LIGHT – TAILLIGHT – SLIMLINE – LED – 12V – RED
RECEPT – EXTERIOR – 120V – 15A – GFI PROTECTED
RECEPT – INTERIOR – 120V – 15A
• GFCI PROTECTED WHERE REQUIRED BY CODE
POWER INLET – MOTORBASE – 50A – W/ SHORE CORD – 25′
SKIRTING – PERIMETER SKIRTING W/ REVERSE BEAVERTAIL
• Includes: Custom Wheel well Skirt, Full Perimeter Skirting, Single Fender-ette Over Each Wheel
PUMP – HYDRAULIC
D-RINGS – 5000# – RECESSED
TIRE/WHEEL – 5T235/80R16/LRE – RADIAL ON ALUMINUM – W/STAINLESS STEEL LUGNUTS
TRIM – WEDGE NOSE – STAINLESS STEEL
TRIM – RUB RAIL – LOWER – ALUMINUM -7″
TRIM – RUB RAIL – UPPER – ALUMINUM – 4″
TRIM – VERTICALS – REAR – STAINLESS STEEL
FRAME PROTECTION – BOGEY WHEELS
FRONT DESIGN -2′ WEDGE
JACK TONGUE -ELECTRIC HYDRAULIC – SINGLE POST
SPARE TIRE MOUNT – INTERIOR WALL -8 LUG
RAILING – VIEWING RAIL – ALUMINUM – FOLD DOWN
• INCLUDES: BUMPERS AT CORNERS

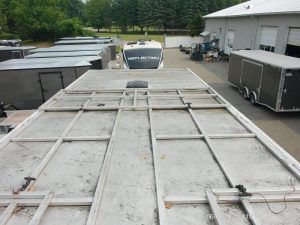

ROOF – WALK ON – PLYWOOD Under One Piece Aluminum Roof.
• 175 LBF / LINEAR FT – NOT TO EXCEED 2000# FOR ENTIRE ROOF
TRIM – SPOILER – REAR – COLOR MATCHED W/ 3 LED LIGHTS
VENT – ROOF – 12V FANTASTIC FAN
• RAIN SENSOR
• REVERSIBLE FAN
• WALL MOUNT THERMOSTAT
• SWITCH COLOR: BLACK
VENT SYSTEM – FLOW THROUGH 1 pr
DOOR – ACCESS -405 SERIES – 24″ X 24″ 1 each
• RIGHT HINGE

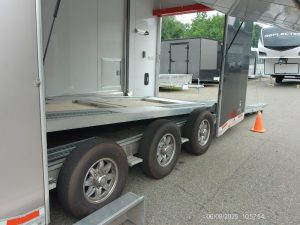

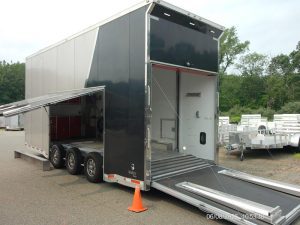

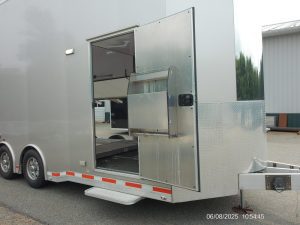

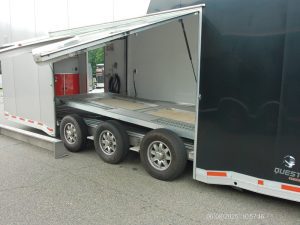

DOOR – ESCAPE – PREMIUM – 132″ X 72″ -TOP HINGE – FMVSS LOCK – REMOVABLE WHEEL WELL 1 each
• (2) ALUMINUM STEPS
• ONE PIECE REMOVABLE INTERIOR WHEEL WELL
• EXTERIOR FENDERETTES INTEGRATED INTO DOOR
• (2) 170# GAS SHOCKS
• (2) PROP RODS

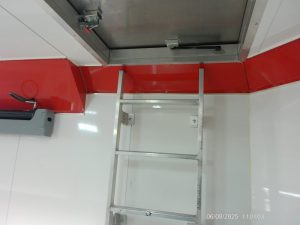

LADDER – INTERIOR – W/ PREMIUM 30″ X 30″ MF ALUMINUM HATCH TO ROOF (STACKER)
• LADDER WITH KNURLED RUNGS
• GAS SHOCKS FOR ACCESS HATCH
• REQUIRES 30 1/2″ X 30 1/2″ ROUGH OPENING
AIRLINE TRACK – SURFACE MOUNT – FLOOR
E-TRACK – RECESSED – FLOOR
ATTIC – LIGHT DUTY W/ ATP FLOOR (RATED AT 20# / SQ. FT.) – ALUMINUM
• INCLUDES: CROSS MEMBERS – 3″
LIGHT – TURN SIGNAL -LED – 12V – SIDE MOUNT
LIGHT – PUCK – LED – 2.75″ – 12V – NON RECESSED
• Location: Under Upper Cabinet
LIGHT – DOME – LED – 12V – NON RECESSED
SWITCH – WALL -3 WAY – 12V
• USED FOR: LIGHT – DOME – LED – 12V – NON RECESSED
LIGHT – RECTANGULAR – LED – 18′- 12V – RECESSED – W/ TRIM RING
SWITCH – WALL – 12V
• USED FOR: LIGHT – RECTANGULAR – LED – 18″- 12V – RECESSED – W/ TRIM RING
SWITCH – ON / OFF / ON – 12V
• USED FOR: LED LIGHTS IN REAR SPOILER
WIRING – STUB WIRE – 12V – TEW 14/2
WINCH BOX – IN FLOOR
ATC CUSTOM OPTIONS

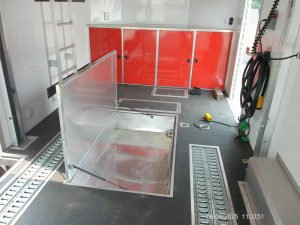

COMPARTMENT- IN FLOOR – 32″W X 60″L X 11″D
LIFT TRANSITION – EXTEND 2″ BEHIND DECK – TO ACCOMODATE BEAVERTAIL
SWITCH – WALL – 12V
• FOR REAR 12V STUB WIRE

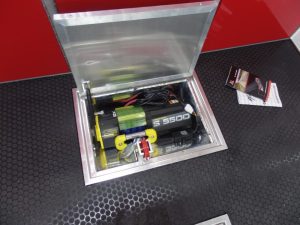

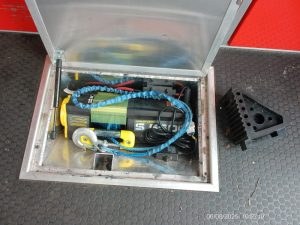

WINCH – 5500# – W/ 60′ SYNTHETIC ROPE & WIRELESS REMOTE
. 6400# ROLLING WEIGHT
• INCLUDES PULLEY ROLLER ON LIFT

We know this trailer, it has been well maintained, the original owner purchased this trailer from Performance Trailers Inc. in 2017.
I have the original prints, and order list. This customer is ordering a new 2026 ATC 30 ft. Stacker, so it is time to let this one go.
Showing by appointment. Call 973-347-3472 and ask for Glenn
